Plugin Checkpoint Time Differences

made by aca

This plugin is compatible and tested with Gamemode TimeAttack and Rounds, well working for multilap maps in TimeAttack. NOT WORKING WITH GAMEMODE Laps.

Displays checkpoint-time differences to a tracked record - either to personal best time or to a specific dedimania/local record.

Default tracking is your personal best time (may it be dedimania or local - if both are equal, dedimania is taken).

In the middle

  • Shows current checkpoint-time difference when crossing a checkpoint / finish
  • Hidden 2 seconds after crossing cp / finish

At bottom

  • Shows current checkpoint-time difference when crossing and till next crossing a checkpoint
  • Shows also the kind and number of the tracked record
  • Shows a colorbar

At top

  • Shows the checkpoint-time differences of every crossed checkpoint

Known bugs

If you spectate, the widgets of the spectated will be shown to you. Unfortunately I cannot hide them in free-spec-mode (if you have spectated a player before).

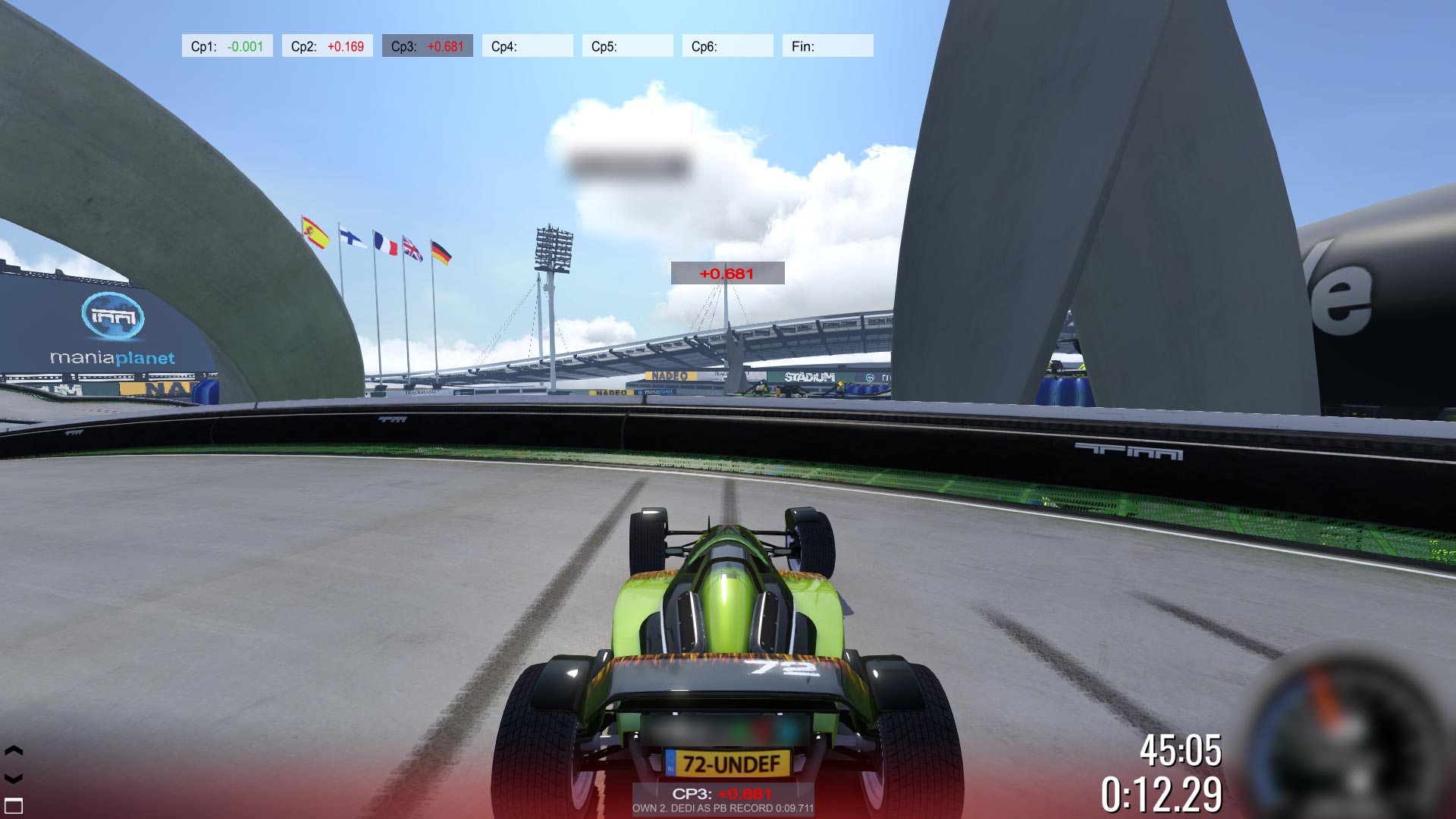

Overview of all Widgets
Information in chat


  • /dcps N

    You track your Dedimania record - if you have one, otherwise last Dedimania record

    N = a number you want to track (e.g. Dedimania record no. 1), or use the command without the number

  • /lcps N

    You track your local record - if you have one, otherwise last local record

    N = a number you want to track (e.g. local record no. 1), or use the command without the number

  • /pbcps

    You track your personal best time


  • Requires plugin.local_records.php
  • Requires plugin.dedimania.php


  • Edit config/checkpoint_time_differences.xml to your needs and place it into the config folder of UASECO.
  • The plugins/plugin.checkpoint_time_differences.php has to be stored into the plugins folder of UASECO.
  • Edit config/plugins.xml and add <plugin>plugin.checkpoint_time_differences.php</plugin> to it.
  • That is it, restart UASECO and enjoy!

Configuration config/checkpoint_time_differences.xml

If you show the middle widget
  • Edit file config/modescript_settings.xml and set <visible>true</visible> from <checkpoint_time> to <visible>false</visible>.
If you show the bottom widget and the colorbar
  • Edit file config/checkpoints.xml and set <enabled>true</enabled> and <enable_colorbar>true</enable_colorbar> from <time_diff_widget> to <enabled>false</enabled> and <enable_colorbar>false</enable_colorbar>.


File Version Build Downloads Author(s)
plugin.checkpoint_time_differences.php 2.0.5 2019-02-07 55 aca
plugin.checkpoint_time_differences.php 2.0.4 2019-02-06 21 aca
plugin.checkpoint_time_differences.php 2.0.3 2018-05-18 34 aca


General Public License version 3

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.


For feedback, help, bugs or suggestions please use the official ManiaPlanet forum at the UASECO section.
